Rclone

Rclone is a CLI tool installed on filexfer.hpc.arizona.edu that can be used to transfer files between HPC and Cloud-based storage sites. To use Rclone, you will need to start by configuring it. Rclone's configuration process is fairly straightforward and has a large number of options to choose from. Some configuration examples are shown below.

Configuring Rclone

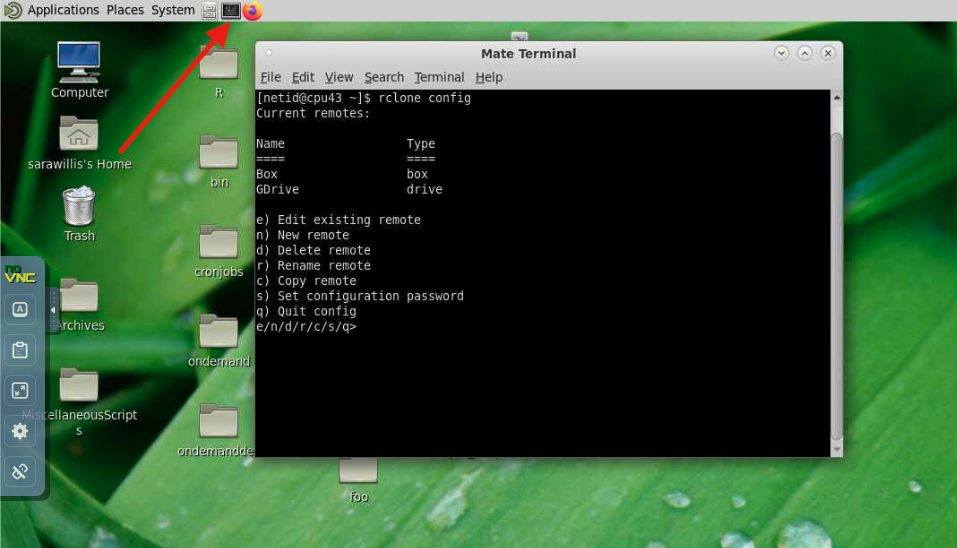

To configure Rclone, you'll first want to be in an OnDemand Desktop session. This will give you access to both a terminal session and browser that can be used for granting Rclone access to your target cloud service. To configure Rclone, open a MATE terminal and type rclone config

Globus homescreen

some examples for configuring rclone for common cloud services are shown below. Some text has been removed for brevity. If there is nothing included after the > rclone prompt, then the option was left empty before hitting Enter. When entries are left blank, Rclone's default options will be used.

Verify your input

The instructions below were written on 9/6/2024. It's possible some Rclone configuration options have been updated, so verify the any options you enter match the correct cloud provider and desired configuration options.

Google DriveBox

[netid@sdmz-dtn-4 ~]$ rclone config
Name                 Type
====                 ====

  e) Edit existing remote
  n) New remote
  d) Delete remote
  r) Rename remote
  c) Copy remote
  s) Set configuration password
  q) Quit config
  e/n/d/r/c/s/q> n
  name> GoogleDrive
  Type of storage to configure.
  Enter a string value. Press Enter for the default ("").
  Choose a number from below, or type in your own value
  ...
  17 / Google Drive
    \ "drive"
  ...
  Storage> 17
  Google Application Client Id
  client_id>
  client_secret>
  scope> 1
  root_folder_id>
  service_account_file>
  Edit advanced config? (y/n)
  y) Yes
  n) No
  y/n> n

The next prompt will ask if you would like to use auto config, select y. This will open a Firefox browser prompting you to log into your Google Drive account. Once you've successfully logged in, authorize rclone for access. You will then return to your terminal:

Remote config
Use auto config?
  * Say Y if not sure
  * Say N if you are working on a remote or headless machine
y) Yes
n) No
y/n> y
If your browser doesn't open automatically go to the following link: <long URL>
Log in and authorize rclone for access
...
Configure this as a team drive?
y) Yes
n) No
y/n> n
--------------------
[GoogleDrive]
type = drive
scope = drive
token = {"access_token": <lots of token data>}
--------------------
y) Yes this is OK
e) Edit this remote
d) Delete this remote
y/e/d> y
Current remotes:

Name                 Type
====                 ====
GoogleDrive          drive

[netid@sdmz-dtn-4 ~]$ rclone config
 Name                 Type
 ====                 ====

  e) Edit existing remote
  n) New remote
  d) Delete remote
  r) Rename remote
  c) Copy remote
  s) Set configuration password
  q) Quit config
  e/n/d/r/c/s/q> n
  name> Box
  Storage> 8
  client_id>
  client_secret>
  box_config_file>
  access_token>
  box_sub_type> 1
  Edit advanced config?
  y/n> n
  Use auto config?
    * Say Y if not sure
    * Say N if you are working on a remote or headless machine

  y) Yes (default)
  n) No
  y/n> y

This will open a Firefox browser. To sign in, click the SSO option and sign in with your university credentials (or log into your personal account), then authorize rclone so it can access Box. Once you're done, back in the terminal:

y) Yes this is OK (default)
e) Edit this remote
d) Delete this remote
y/e/d> y

/n/d/r/c/s/q> q

Rclone Transfers

The syntax to initiate file transfers will typically look something like

rclone copyto <source> <destination>

When <source> and/or <destination> are a cloud service, the format will be:

<Name>:/path/to/file/or/directory

Where <Name> is the name you gave for the service during the configuration process. For example, if I were to access my University Box endpoint (configured in the example in the previous section), I could check its contents using rclone lsf(1) with:

Tip: rclone ls will list all files in a root directory and its subdirectories making it much harder to parse. You may want to start with using lsf which provides more user-friendly output.

[netid@sdmz-dtn-4 ~]$ rclone lsf Box:
HPC Documentation Site/
IntroToViz.pptx
Photos/
RcloneExample/
[netid@sdmz-dtn-4 ~]$ rclone lsf Box:RcloneExample
example.txt

If I wanted to transfer the file example.txt to my working directory on HPC:

[netid@sdmz-dtn-4 ~]$ rclone copyto Box:RcloneExample/example.txt ./example.txt
[netid@sdmz-dtn-4 ~]$ ls -l example.txt
-rw-r-----. 1 netid staff 4 Sep  5 14:14 example.txt

More detailed information on using Rclone can be found in their documentation https://rclone.org/commands/.
